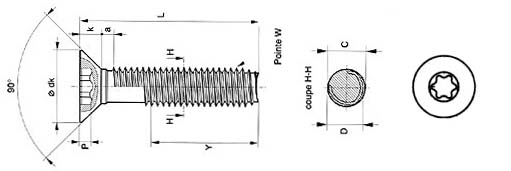

TAPTITE TETE FRAISEE TORX DIN 7500 ~C |
|
| |
|
|
Modèle 0108
|
ACIER |
| |
|
|
|
|
| |
|
|
Modèle 0109
|
INOX |
| Acier doux |
Acier 8.8 |
Acier 10.9 |
Acier 12.9 |
Zingue blanc |
Zingue bichro |
Inox
A2 |
Inox
A4 |
Nylon |
Laiton |
Cuivre |
Alu |
Acier Hte rés. |
| |
x |
|
|
x |
x |
x |
|
|
|
|
|
|
ACIER TETE DIN 965
| |
M2 |
M2,5 |
M3 |
M3,5 |
M4 |
M5 |
M6 |
M8 |
| C |
1.98 - 2.06 |
2.48 - 2.57 |
2.98 - 3.07 |
3.48 - 3.58 |
3.98 - 4.08 |
4.98 - 5.09 |
5.97 - 6.10 |
7.97 - 8.13 |
| D |
1.90 - 1.98 |
2.39 - 2.48 |
2.88 - 2.97 |
3.36 - 3.46 |
3.84 - 3.94 |
4.82 - 4.93 |
5.77 - 5.90 |
7.72 - 7.88 |
| Ø dk |
3.50 - 3.80 |
4.40 - 4.70 |
5.30 - 5.60 |
6.14 - 6.50 |
7.14 - 7.50 |
8.84 - 9.20 |
10.57 - 11.0 |
14.07 - 14.50 |
| k |
1.20 |
1.50 |
1.65 |
1.95 |
2.20 |
2.75 |
3.30 |
4.40 |
| N° empreinte |
6.00 |
8.00 |
10.00 |
10.00 |
20.00 |
20.00 |
30.00 |
40.00 |
| Pénétration |
0.60 - 0.80 |
0.90 - 1.10 |
0.85 - 1.10 |
0.95 - 1.20 |
0.85 - 1.15 |
1.40 - 1.70 |
1.65 - 2.00 |
2.30 - 2.70 |
| Y partiel |
16 |
18 |
20 |
20 |
22 |
25 |
28 |
35 |
INOX TETE ISO 14581
| d1 |
M2,5 |
M3 |
M4 |
M5 |
M6 |
| dk |
4.7 |
5.6 |
7.5 |
9.2 |
11 |
| k |
1.5 |
1.65 |
2.2 |
2.5 |
3 |
| N° empreinte |
X 8 |
X 10 |
X 20 |
X 25 |
X 30 |
| p |
1.2 |
1.3 |
1.8 |
2 |
2.4 |
|
Vis autoformeuses Taptites
