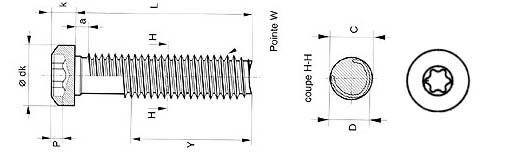

TAPTITE TETE CYLINDRIQUE BOMBEE TORX (TETE BASSE REDUITE) |
|
| Acier doux |
Acier 8.8 |
Acier 10.9 |
Acier 12.9 |
Zingue blanc |
Zingue bichro |
Inox
A2 |
Inox
A4 |
Nylon |
Laiton |
Cuivre |
Alu |
Acier Hte rés. |
| |
x |
|
|
x |
x |
|
|
|
|
|
|
|
| |
M2,5 |
M3 |
M3,5 |
M4 |
M5 |
M6 |
M8 |
| C |
2.48 - 2.57 |
2.98 - 3.07 |
3.48 - 3.58 |
3.98 - 4.08 |
4.98 - 5.09 |
5.97 - 6.10 |
7.97 - 8.13 |
| D |
2.39 - 2.48 |
2.88 - 2.97 |
3.36 - 3.46 |
3.84 - 3.94 |
4.82 - 4.93 |
5.77 - 5.90 |
7.72 - 7.88 |
| Ø dk |
4.20 - 4.50 |
4.70 - 5.00 |
5.70 - 6.00 |
6.64 - 7.00 |
7.64 - 8.00 |
9.64 - 10.00 |
13.57 - 14.0 |
| k |
1.45 - 1.70 |
1.75 - 2.00 |
2.15 - 2.40 |
2.55 - 2.80 |
3.20 - 3.50 |
3.70 - 4.00 |
5.20 - 5.50 |
| N° empreinte |
8.00 |
10.00 |
10.00 |
20.00 |
20.00 |
30.00 |
40.00 |
| Pénétration |
0.84 - 1.10 |
0.77 - 1.10 |
0.89 - 1.20 |
0.84 - 1.15 |
1.15 - 1.45 |
1.27 - 1.60 |
2.34 - 2.70 |
| Y partiel |
16 |
18 |
18 |
20 |
22 |
28 |
35 |
|
Thread forming screws
