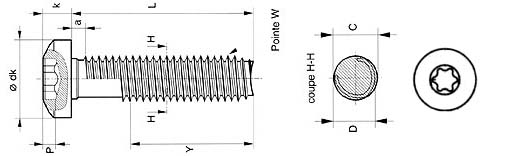

TAPTITE PAN HEAD CAP SCREW TORX DIN 7500~C |
|
- Modèle 0103 INOX
- Modèle 0102 ACIER
| C |
1.98 - 2.06 |
2.48 - 2.57 |
2.98 - 3.07 |
3.48 - 3.58 |
3.98 - 4.08 |
4.98 - 5.09 |
5.97 - 6.10 |
7.97 8.13 |
| D |
1.90 - 1.98 |
2.39 - 2.48 |
2.88 - 2.97 |
3.36 - 3.46 |
3.84 - 3.94 |
4.82 - 4.93 |
5.77 - 5.90 |
7.72 - 7.88 |
| Ø dk |
3.70 - 4.00 |
4.70 - 5.00 |
5.70 - 6.00 |
6.64 - 7.00 |
7.64 - 8.00 |
9.64 - 10.00 |
11.57 - 12.0 |
15.57 - 16.0 |
| k |
1.48 - 1.72 |
1.88 - 2.12 |
2.28 - 2.52 |
2.58 - 2.82 |
2.95 - 3.25 |
3.65 - 3.95 |
4.45 - 4.75 |
5.85 - 6.15 |
| N° empreinte |
6.00 |
8.00 |
10.00 |
10.00 |
20.00 |
20.00 |
30.00 |
40.00 |
| Pénétration |
0.60 - 0.80 |
0.90 - 1.10 |
0.85 - 1.10 |
0.95 - 1.20 |
0.85 - 1.15 |
1.40 - 1.70 |
1.65 - 2.00 |
2.30 - 2.70 |
| Y partiel |
16 |
18 |
18 |
20 |
22 |
25 |
28 |
35 |
| dk |
5 |
5.6 |
8 |
9.5 |
12 |
| k max |
2.1 |
2.4 |
3.1 |
3.7 |
4.6 |
| N° empreinte |
X 8 |
X 10 |
X 20 |
X 25 |
X 30 |
| p max |
1.04 |
1.27 |
1.66 |
1.91 |
2.42 |
|
Thread forming screws
