ECROU CRENEAU DIN 935 Print
  • Modèle 0731
Acier
doux		 Acier
8.8		 Acier
10.9		 Acier
12.9		 Zingue
blanc		 Zingue
bichro		 Inox
A2		 Inox
A4		 Nylon Laiton Cuivre Alu Acier
Hte rés.
x X     X X x x

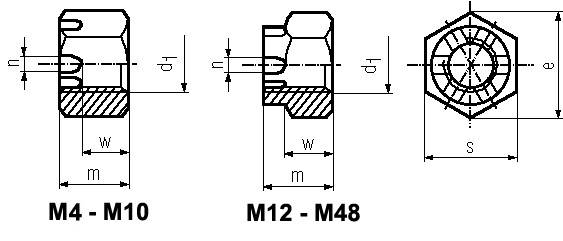

Ecrou creneau Ecrou creneau
d1 e min m
max		 w
max		 n
min.		 s
M4 7.66 5.0 3.2 1.2 7
M5 8.79 6.0 4.0 1.4 8
M6 11.05 7.5 5.0 2.0 10
M8 14.38 9.5 6.5 2.5 13
M10 18.9 12 8 2.8 17/16*
M12 21.1 15 10 3.5 19/18*
(M14) 24.49 16 11 3.5 22/21*
M16 26.75 19 13 4.5 24
(M18) 29.56 21 15 4.5 27
M20 32.95 22 16 4.5 30
(M22) 35.03 26 18 5.5 32/34*
M24 39.55 27 19 5.5 36
(M27) 45.2 30 22 5.5 41
M30 50.85 33 24 7 46
(M33) 55.37 35 26 7 50
M36 60.79 38 29 7 55
(M39) 66.44 40 31 7 60
M42 71.3 46 34 9 65
(M45) 76.95 48 36 9 70
M48 82.6 50 38 9 75

* Selon norme ISO
