ANNEAUX INVERSES EXTERIEURS TYPE 858 Print
  • Mod√®le¬†1304
Acier
doux
Acier
8.8
Acier
10.9
Acier
12.9
Zingue
blanc
Zingue
bichro
Inox
A2
Inox
A4
Nylon Laiton Cuivre Alu Acier
Hte rés.
                        x

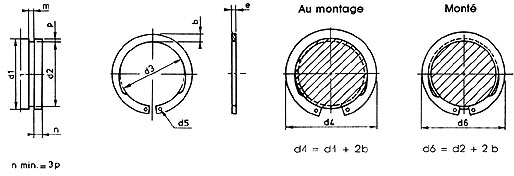

Arbre Anneau Gorge Référence

d3 e b d5 d2   m p
d1   Tol. h11   Tol. min
12 11.2 +0.18
-0.36
1 2 1.1 11.5 0
-0.11
  0.25 858.012 OBSO
13 11.9 1 2.1 1.1 12.4   0.3 858.013 OBSO
14 13.05 1 2.2 1.2 13.4 1.1 0.3 858.014 OBSO
15 13.95 1 2.35 1.2 14.3   0.35 858.015
16 14.88 1 2.4 1.2 15.3   0.35 858.016 obso
17 15.78 1 2.6 1.2 16.2   0.4 858.017
18 16.5 1.2 2.6 1.2 17   0.5 858.018 obso
19 17.51 1.2 2.85 1.2 18   0.5 858.019 obso
20 18.45 +0.21
-0.42
1.2 3 1.5 19 0
-0.21
  0.5 858.020 obso
22 20.45 1.2 3.25 1.6 21 1.3 0.5 858.022 obso
24 22.35 1.2 3.45 1.6 23   0.5 858.024 obso
25 23.15 1.2 3.6 1.6 23.9   0.55 858.025
26 24.2 1.2 3.6 1.6 24.9   0.55 858.026 obso
28 25.9 1.5 3.8 1.6 26.6   0.7 858.028
30 27.65 1.5 3.9 2 28.5   0.75 858.030 obso
32 29.6 1.5 4 2 30.3 0
-0.25
1.6 0.85 858.032 obso
34 31.5 +0.25
-0.50
1.5 4.1 2 32.3   0.85 858.034 obso
35 32.35 1.5 4.2 2 33.3   0.85 858.035
38 34.95 1.75 4.4 2.2 36   1 858.038 obso
40 36.95 +0.39
-0.78
1.75 4.5 2.2 38   1 858.040 obso
42 38.5 1.75 4.7 2.2 39.5 1.85 1.25 858.042 obso
45 41.5 1.75 5 2.2 42.5   1.25 858.045 obso
48 44.5 1.75 5.3 2.2 45.5   1.25 858.048 obso
50 45.8 2 5.4 2.5 47   1.5 858.050 obso
58 53.8 +0.46
-0.92
2 5.8 2.5 55 0
-0.30
2.15 1.5 858.058 obso
60 55.8 2 6 2.5 57   1.5 858.060
65 60.4 2.5 6.7 2.5 62.2 2.65 0.4 858.065 obso
